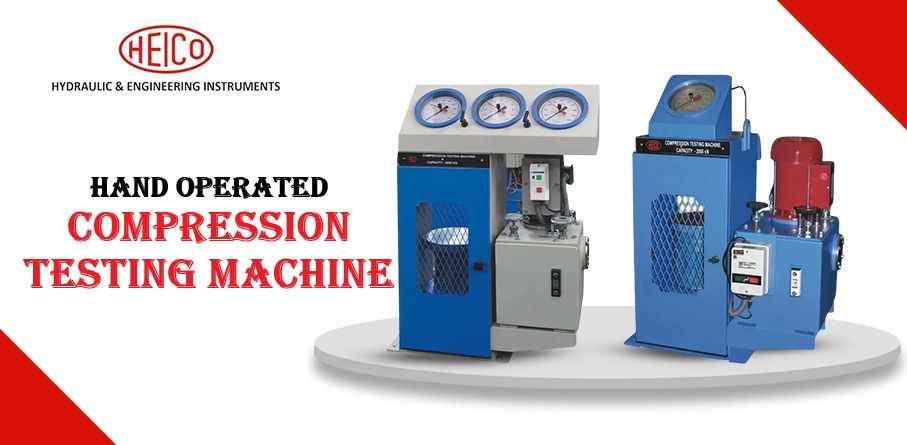

How Hand Operated Compression Testing Machines Work: A Complete Guide

In industries like construction, civil engineering, and materials testing, the need for accurate, reliable, and cost-effective testing tools is critical. One such tool that remains popular due to its simplicity and efficiency is the hand operated compression testing machine. Whether you're testing concrete cubes, bricks, or other construction materials, this machine delivers precise strength measurements without the complexity of advanced automation.

At Heico Dynamics, a trusted hand operated compression testing machine manufacturer, we’re here to give you a complete breakdown of how these machines work, why they matter, and how to choose the right one.

What is a Hand Operated Compression Testing Machine?

A hand operated compression testing machine is a manually powered device used to determine the compressive strength of materials. These machines apply a gradually increasing load to a sample (like a concrete cube) until it fails, measuring the maximum load the material can withstand.

Key Components of a Hand Operated Compression Testing Machine

• Load Frame – The sturdy structure that holds the test sample.

• Hydraulic System – Includes a manually operated hydraulic pump to generate pressure.

• Pressure Gauge or Digital Display – Shows the load applied during testing.

• Platen or Test Table – Where the test specimen is placed for compression.

At Heico Dynamics, we design machines with robust frames, precision gauges, and smooth hydraulic operation for dependable performance.

How Does a Hand Operated Compression Testing Machine Work?

Step-by-Step Process:

• Sample Placement

   The test specimen, usually a concrete cube or brick, is placed between the upper and lower platens.

• Load Application

   Using a hand lever or wheel, the operator pumps the hydraulic system. This generates pressure and gradually increases the load on the specimen.

• Load Reading

   The pressure gauge or digital meter shows the applied force. The operator notes the maximum load the sample can withstand before failure.

• Result Calculation

   The compressive strength is calculated using:

   Compressive Strength = Maximum Load / Cross-sectional Area of Specimen




Benefits of Using a Hand Operated Compression Testing Machine

1. Simplicity and Ease of Use

No complex setup—just place the sample, operate the lever, and read the result.

2. Cost-Effective Solution

Ideal for small labs, field testing, and budget-conscious operations.

3. Portable and Durable

Compact and rugged design makes it perfect for on-site testing.

4. Reliable Results

Provides accurate compressive strength readings with minimal maintenance.

Applications of Hand Operated Compression Testing Machines

• Construction sites for on-the-spot concrete strength testing

• Laboratories for research and quality control

• Brick manufacturing units for compressive strength verification

• Educational institutions for teaching material strength concepts

Why Choose Heico Dynamics as Your Hand Operated Compression Testing Machine Manufacturer

At Heico Dynamics, we understand the importance of precision, durability, and support. Our hand operated compression testing machine is:

• Built with high-grade materials for long-lasting performance.

• Calibrated for accurate pressure measurement.

• Designed for easy operation with smooth hydraulic control.

• Supported by technical assistance and after-sales service.

With decades of experience, we are a trusted manufacturer for industries seeking reliable material testing equipment.

Maintenance Tips for Longer Machine Life

• Regular Calibration – Ensure accuracy by calibrating periodically.

• Clean Hydraulic Components – Keep oil levels checked and avoid contamination.

• Inspect Gauges and Levers – Maintain smooth operation with routine checks.

• Store Properly – Keep in a dry, dust-free environment when not in use.

Conclusion

A hand-operated compression testing machine is a vital tool for ensuring the strength and safety of construction materials. Its simplicity, reliability, and cost-efficiency make it ideal for businesses that demand precision without complexity.

Whether you need a single machine or outfitting an entire lab, Heico Dynamics is your go-to hand operated compression testing machine manufacturer, offering quality equipment and expert support every step of the way.
